Spiral Car Charging IP55 16A Male To Female Connector

Ask Lasest Price
Brand Name :	Deligreencs
Model Number :	DE-PP22
Certification :	TUV / CE Certification
Payment Terms :	T/T, Western Union
Delivery Time :	3-10 working days

Add to Cart

Product Details
Company Profile

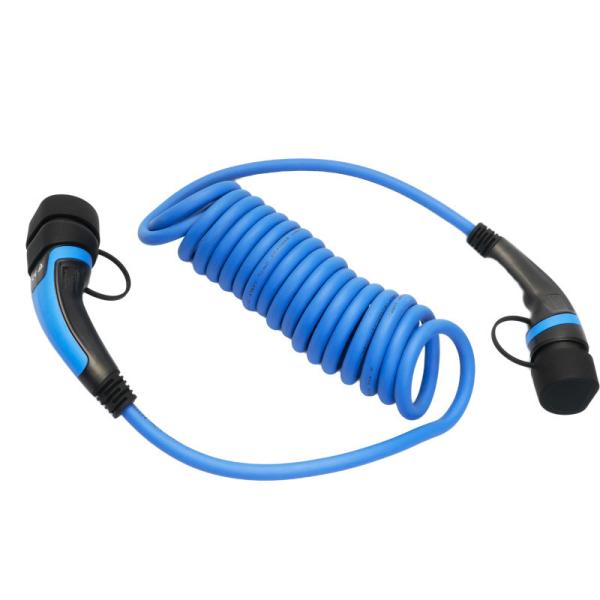

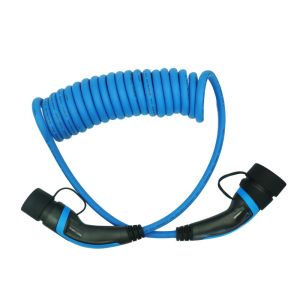

Spiral Car Charging IP55 16A Male To Female Connector

Type 2 Male to Type 2 Female EV Charging Connector with 5meters Spiral cable

Electrical Performance

The Rated Current	16A /32A	The Rated Voltage	250V /480V
Insulation Resistance	1000MΩ (DC500V)	Pins Tempreature Rise	<50K
Withstand Voltage	2000V	Contact Impedance	0.5mΩ Max
Rubber Color	Can be customized	Shell Color	Black / White
Cable Color	Can be Customized

Spiral Car Charging IP55 16A Male To Female Connector

Features

1. Conform to the provisions and requirements of IEC 62196-2 2016 2-IIb, SAE J1772-2012, IEC 62196-2 2016 2-I.
2. Using riveting pressure process with none screw ,have a beautiful appearance. Hand-held design conform to the ergonomic principle , plug conveniently.
3. XLPO for cable insulation prolonging the aging resistance life-span, TPU sheath improved the bending life and wear resistance of cable.
4. Excellent protection performance, protection grade achieved IP55 (working condition).
5. Adopted double color coating technology, personalized custom a variety of colors(Orange, blue, green,grey).

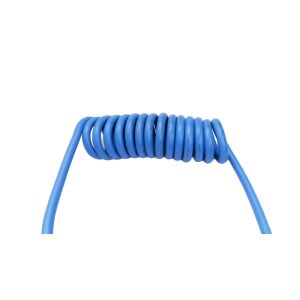

Cable Technical Parameters

This cable is used for charging equipment for electric vehicles and charging port,or for control systerms of charging saturation,safety warming and other control signal transfer function of the vehicle charging and discharging, Cable with ROHS and TUV and CE certification

Product Type	Phase	Rated Current / Voltage	Cable Specifications
Type 2 to Type 2	Single Phase	16A /250V	3×2.5mm2+2×0.5mm2
Type 2 to Type 2	Three Phase	16A /480V	5×2.5mm2+2×0.5mm2
Type 2 to Type 2	Single Phase	32A /250V	3×6mm2+2×0.5mm2
Type 2 to Type 2	Three Phase	32A /480V	5×6mm2+2×0.5mm2

FAQ:
1, Which amp of EV connectors do you have?
16A /32A/40A/50A/63A
2, Do you have three phase EV cable?
yes single phase and three phase both are available
3, Can i print my own logo?
Yes, MOQ 100pcs.no extra fee.
4, Can i customzie different color for the connector or cable?
Yes ,besides black,we can make in blue,orange,green,grey.MOQ 200pcs.no extra fee.
5, How is your warranty?
3 years. Free replacement for any defective goods.Respond any
warranty issue within 1 business day.
Customers'satisfactory comes first.
6, How long is the lead time?
For sample order, we can ship in 2 to 5 days
For volume order, 7~10days. 4 weeks for customizing logo or color.
7, What shipping method do you use?
For less than 100KG goods,we normally ship by DHL/UPS/FedEx and
other special airline.
Over 100KG,We ship by air or by sea.
please contact with us if you need tax and duty free shipping
method
