Digital Power Analyzer 0-200V 300A with Diverter Impedance Internal
Resistance Capacity Ammeter Battery Meter
300A battery meter Specification
| Parameter | Test Range
| Resulation | Measurement accuracy |
| Voltage | 0-200V. (when the test voltage is <8V, please use the
independent power supply mode) | 0.01V | 1% |
| Current | 0-200A | 1mA | 1% |
| Power | 0-2000W | 0.01W | 1% |
| Impedance | 0-1000Ω | 0.1Ω | |
| Internal Resistance | 0-999mΩ | 1mΩ | |
| Capacity | 0-1000AH | 1mAH | 1% |
| Dump energy | Dump energy is display via the battery symbol, totally 10 grids,
every grid present 10% energy |
| Accumulate energy consumption | 0~9999kWh | 1Wh | 1% |
| Running time | 0 ~ 999 hour(without load the time will not accumulate) | | |
Features:

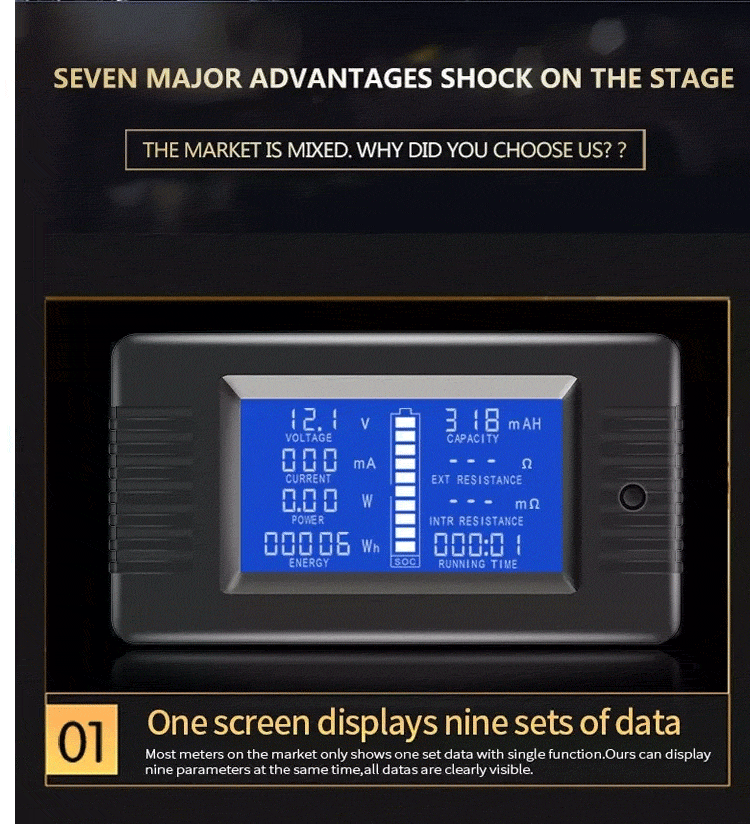

1, One screen displays nine sets of data: Most meters on the market only displays one set data with single
function, ours can display nine parameters at the same time, all datas are clearly visible.This is the best
choice to inspect your batteries.
2. Full view LCD: Use blue film STN full-view LCD screen, every
degree makes you good vision.
3. High precision Chip control: High precision core, choose good electronic components, double
sided layout design, welding process is firm, safe and reliable.

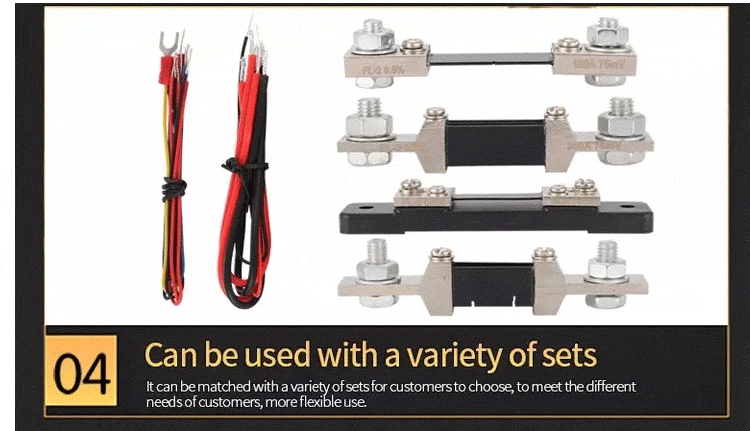

4.Can be used with a variety of sets: It can be matched with a variety of sets for customers to choose,
to meet the different needs of customers, more flexible use.
5. Reinforced nylon material: The outcase use enhances nylon material, elastic enough to crack.
6. Self-contained backlight function: With backlight function, day and night are clearly visible,LCD
screen gives you a better visual experience.
7. Screw-free installation: Press type terminal, no screw,fast and labor-saving installation.
What does the Capacity ammeter do?
The meter is mainly used to test the all kinds of batteries’
voltage,discharge current,discharge power,discharge
impedance,internal resistance,capacity,SOC,energy,running time and
display the measurement data through LCD screen.
- voltage
- discharge current
- discharge power
- discharge impedance
- internal resistance
- capacity
- SOC
- energy
- running time
LCD screen
How does a meter battery work?
It measures battery impedance and by referring to stored data uses
the impedance to produce a reading of how full the battery is. It
just displays battery voltage and percentage charged.
How do I know if my battery needs to be charged?
You need a Deligreen's battery tester/meter,easily know your
battery capacity.
Why a battery meter?
You can fastly know about the status of your
batteris,voltage,dicharge current etc.
Can the ammeter be mounted in car?
Screw-free installation
Easy installatin
Mounted in car for battery surveillance
How do you read a battery monitor?
V=voltage of your battery
mA=current
W=Power
Wh=watt hour
mAh=capacity
Display Function
Accessories
Connection

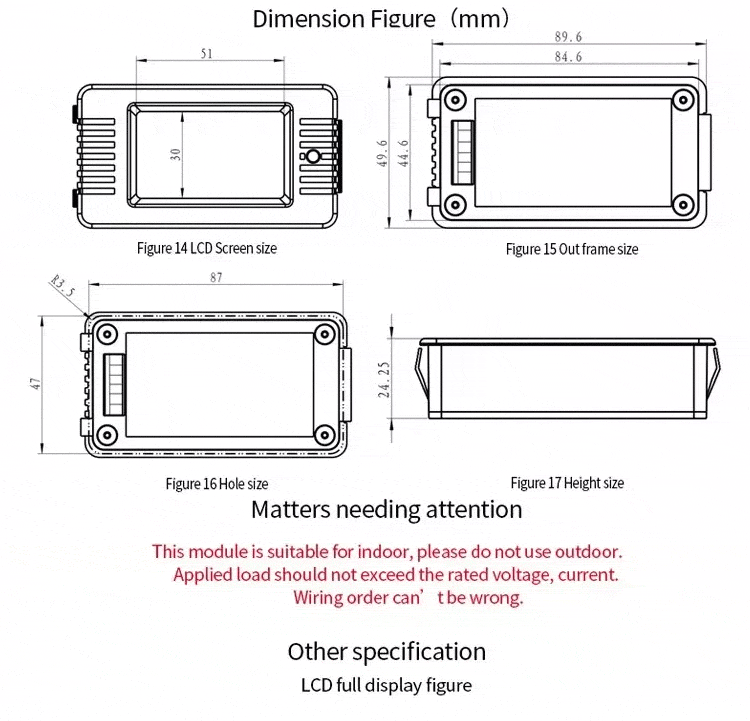

Dimention:
